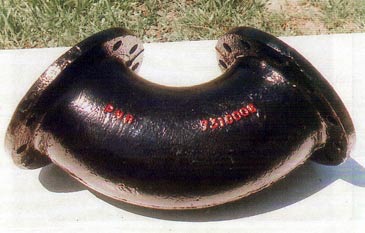

COUDE A DEUX BRIDES

En Fonte PN 10-16

Coude au 1/4



DN
80
100
125
150
200
250
b
24
25
25.5
26
27.5
29
b1
180
200
225
250
300
350
PN10/PN16
Nombre De trous
8/4
8
8
8
8/12
12
PN10/PN 16
diamètre
18
18
18
21
23
23/27
POIDS
13
17
23
31
49
72

Coude au 1/8

DN
150
200
b
26
27.5
b1
250
300
PN10/PN16
Nombre De trous
8
8/12
PN10/PN 16
diamètre
23
23
POIDS
34
54

Coude au 1/16

DN
150
200
b
26
27.5
b1
126
143
PN10/PN16
Nombre De trous
8
8/12
PN10/PN 16
diamètre
23
23
POIDS
24
35

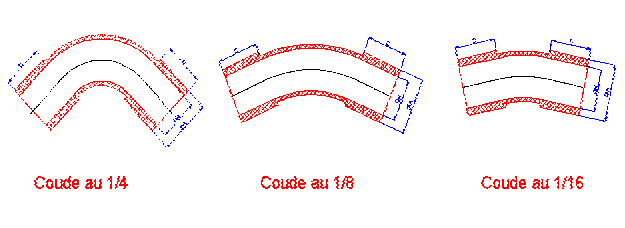

COUDE A BOUTS LISSE

En Fonte
Pour conduite en amiante ciment
DN 100 à 300

DN
Classe
Diamètre Ø A
Cote  C
Poids (K G)
1/4
1/8
1/16
1/4
1/8
1/16
1/4
1/8
1/16
100
20
128
128
128
103
103.5
103.5
12.8
11.7
10.1
30
136
136
136
103
103.5
103.5
15.5
14.6
13.1
125
20
153
153
153
103
103.5
103.5
17
14.8
12.9
30
161
161
161
103
103.5
103.5
20.2
17.3
16.2
150
20
181
181
181
110
110
110
23.8
22.5
18.6
30
194
194
194
110
110
110
40.3
27.1
24.7
200
20
238
238
238
117
117
117
40
36.9
30.2
30
256
256
256
117
117
117
52.7
46.6
41.7
250
20
294
294
294
117
117
117
63.4
55.1
47.6
30
316
316
316
117
117
117
82.3
69
66.7
300
20
352
352
352
122
122
122
94.8
80.8
69.4
30
378
378
378
122
122
122
122.5
107
96
